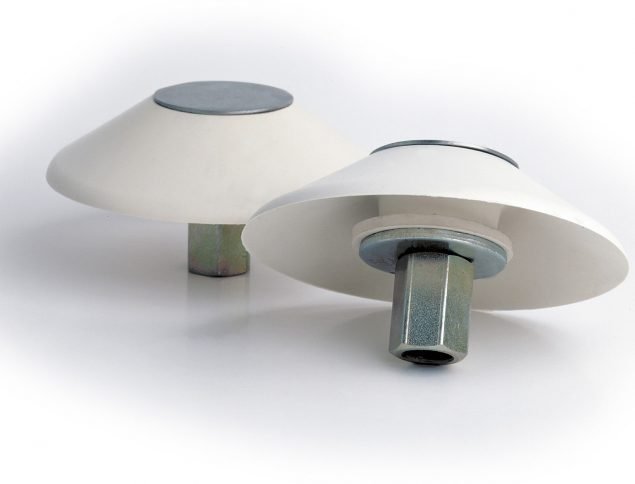

Aeration Pads

Simultaneously aerating and vibrating bulk material, the low profile Coperion K-Tron aeration pads provide an effective flow aid for use when discharging all types of granular or powdered materials.

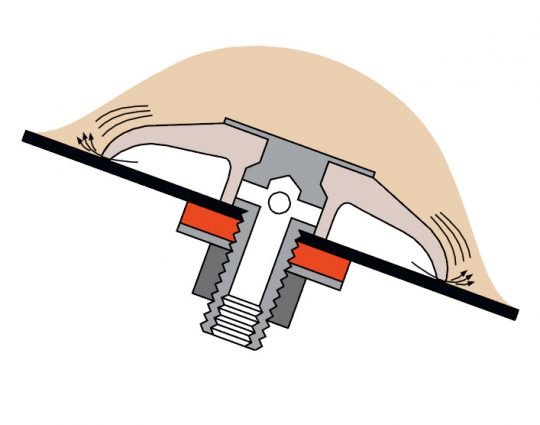

Air on

Air is introduced into the silo or bin through the aeration pad to aerate and fluidize the material. As air flows under the rim of the diffuser, it causes it to vibrate, helping move material that has a tendency to bridge.

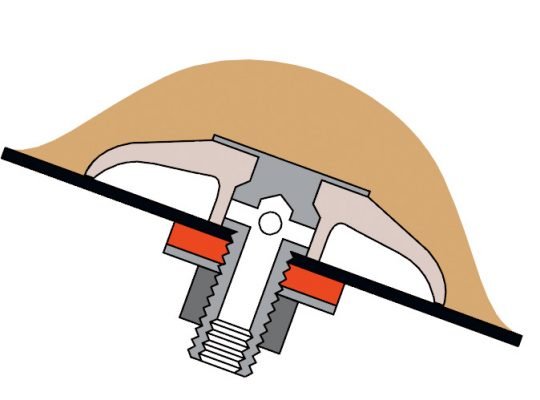

Air off

When the air supply is switched off, the pressure of the material forces the specially designed diffuser against the side of the bin, preventing material from escaping under the diffuser and into the air supply line.

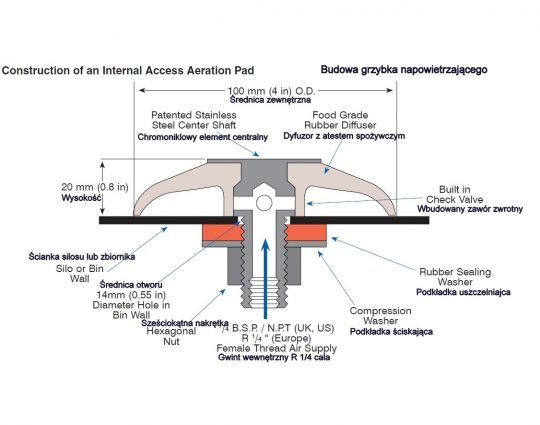

Construction

  • Stainless steel (316L) shaft with food grade silicone rubber diffuser
  • Vibrating action promotes material flow
  • Compatible with any type of silo or bin
  • Low profile improves material flow
  • Captive diffuser eliminates risk of detachment during operation
  • Uses pressured air 5 to 20 psig (0.3 to 1.3 Bar)
  • Safe for use in hazardous areas
  • Rated for temperature up to 205°C [401°F]

Features

  • Retrofitted in minutes
  • Suitable for granular or powdered materials
  • Suitable for abrasive materials
  • Durable construction
  • Totally maintenance free
  • Self-cleaning and hygienic
